Combined crash cushions

All our crash cushions are crash tested according to EN 1317–3 and CE-marked according to EN 1317–5.

Our combined crash cushions have one side parallel to the center axis and the other one tapered. They are offered in three different lengths depending on speed class.

For each speed class there are three different taper angles/widths.

Combined crash cushions
Crash cushions Speed class Length (mm) Width (mm) Height (mm) Sketch

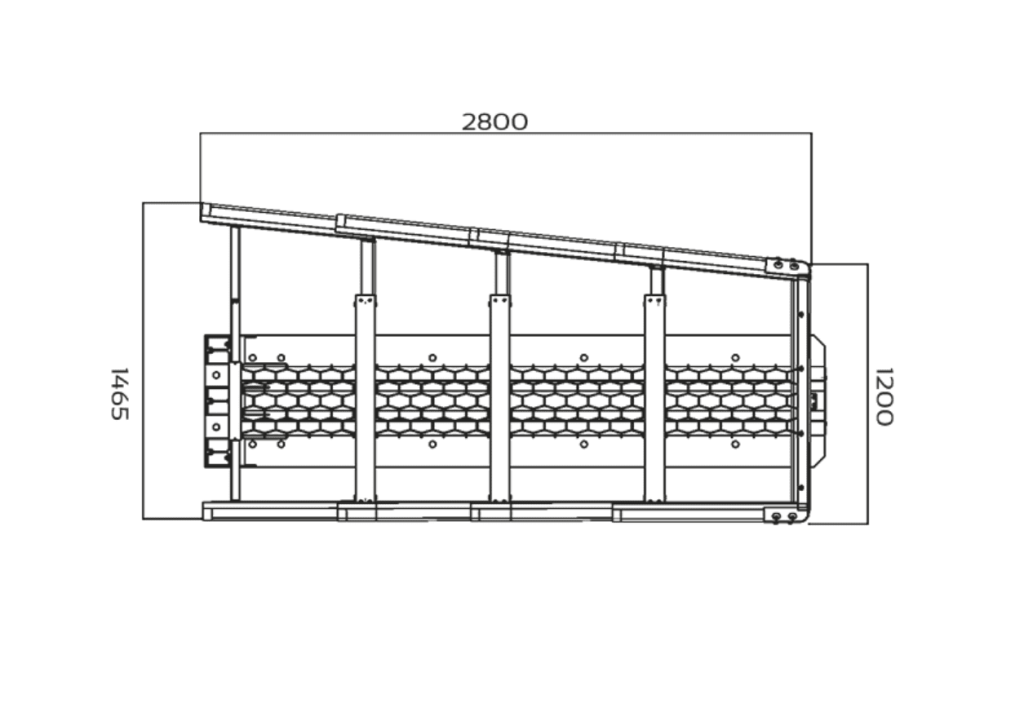

Nordic SMA 80 Semi W
80 km/h
2800
1465
770
Nordic SMA 100 Semi W
100 km/h
4700
1640
770
Nordic SMA 110 Semi W
110 km/h
5900
1760
770
Nordic SMA 80 Semi WS
80 km/h
2800
1194
770
Nordic SMA 100 Semi WS
100 km/h
4700
1370
770
Nordic SMA 110 Semi WS
110 km/h
5900
1490
770
Nordic SMA 80 Semi WL
80 km/h
2800
1846
770
Nordic SMA 100 Semi WL
100 km/h
4700
2025
770
Nordic SMA 110 Semi WL
110 km/h
5900
2160
770
